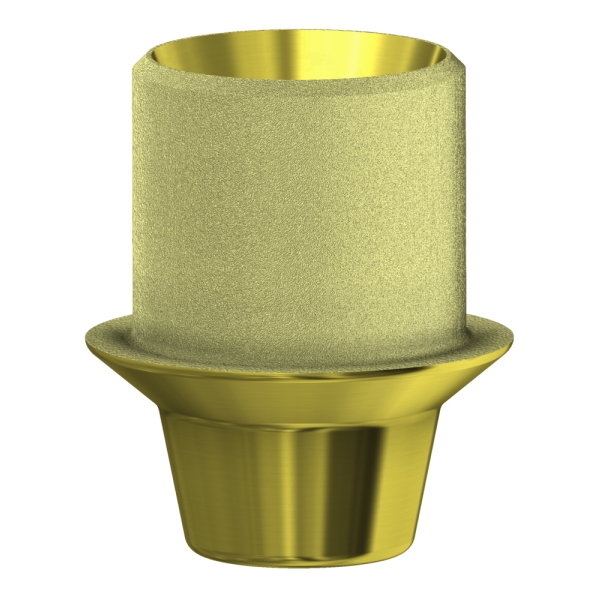

ANGLEBase® compatible with Astra Tech Osseospeed™
€41.40
SKU
ASOS-005
Maximum flexibility for screw-retained restorations.
The DESS® ANGLEBase® family allows correction of the screw channel emergence by up to 25°, with 360° rotation, offering greater freedom during the design of screw-retained implant-supported restorations.
Thanks to SelectGrip® technology, the gold anodized finish and the Torx screw socket, it provides mechanical stability, predictable bonding and excellent aesthetic integration.
With Thinner ANGLEBase®, the family also incorporates a specific solution for narrow platforms, with a reduced prosthetic platform, new gingival heights, a larger cementation surface and a design with two flat sides, enabling more predictable restorations even when the available space is limited.
Technical specifications
| Field | Value |
|---|---|
| Product | DESS® Thinner ANGLEBase® / ANGLEBase® |
| Product type | Angled Ti Base / interface for angled channel |
| Material | Titanium Grade 5 ELI |
| Finish | Gold anodized |
| Maximum angulation | Up to 25° |
| Rotation | 360° |
| Screw system | Torx |
| Surface technology | SelectGrip® |
| Indication | Screw-retained implant-supported restorations requiring angular correction of the screw channel |
| Workflow | Compatible with CAD/CAM systems and DESS® digital libraries |
ANGLEBase® / Thinner ANGLEBase® Comparison
| ANGLEBase® | Thinner ANGLEBase® |
|---|---|
| Conventional platforms | Narrow platforms |
| Angular correction up to 25° | Angular correction up to 25° |
| 360° rotation | 360° rotation |
| SelectGrip® technology | SelectGrip® technology |
| Torx screw engagement | Torx screw engagement |
| Gold anodized | Gold anodized |
| 3 mm interface height | 3.3 mm interface height |
| 4.5 mm prosthetic platform | 3.85 mm prosthetic platform |
| Different gingival heights | New gingival heights |
| Single-flat design | Dual-flat design |
